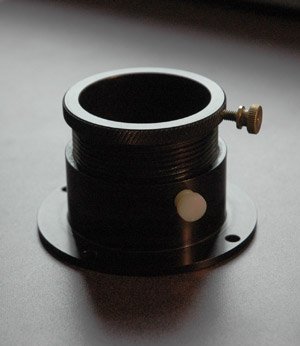

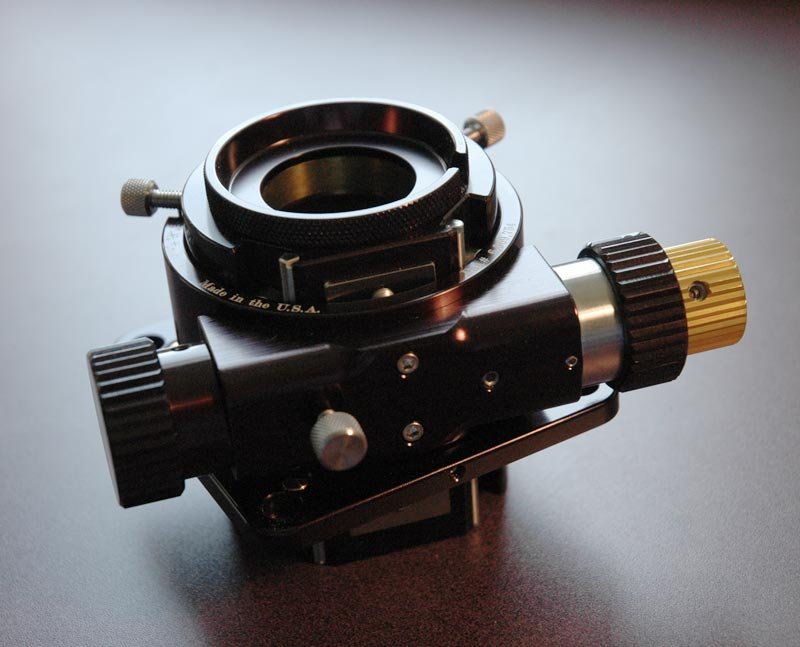

Collimation Control Motor controller schematic:for each collimation motor (Adobe Acrobat format) Replace the Focuser
SAS PresentationPictures from the mirror cell rebuild project:
|
| Old Weight |
New Weight |
Difference | Old Dist | New Dist | Old Moment |
New Moment |
Diff | |||
| Counterweight | 1125 | 0 | 1125 | -50 | -50 | -56250 | 0 | -56250 | ||
| Fan | 87 | 81 | 6 | 15 | 15 1/2 | 1305 | 1256 | 50 | Replace 1.5" fan and duct with 3" fan | |
| Fan Hole Aluminum | 78 | 0 | 78 | 16 1/8 | 16 1/8 | 1261 | 0 | 1261 | 3" diameter | |
| Fan Hole Plywood | 96 | 0 | 96 | 17 | 17 | 1628 | 0 | 1628 | 3" diameter (chamferred) | |
| Tailgate Center Board | 2495 | 1373 | 1122 | 16 5/8 | 16 5/8 | 41479 | 22826 | 18653 | Cut out unnecesary wood | |
| Tailgate Back Board | 366 | 0 | 366 | 17 1/8 | 17 1/8 | 6268 | 0 | 6268 | Routed to match center board, 1/4 inch deep | |
| Batteries | 1301 | 400 | 901 | 10 1/2 | 2 1/4 | 13661 | 900 | 12761 | Replace 8 D-cells with SLA battery embedded in bearing | |
| Battery Cutout | 130 | 0 | 130 | 2 1/4 | 2 1/4 | 293 | 0 | 293 | ||
| Motor Control Card mount |
29 | 0 | 29 | 15 1/2 | 16 | 450 | 0 | 450 | Remove excess metal | |
| Motor Connectors | 15 | -15 | 17 | 17 | 0 | 255 | -255 | Replace plugs with barrier strips | ||
| Motor cables | 0 | 17 | 17 | 0 | 0 | 0 | Replace 8 oversized wires with 5 smaller ones, remove extra plugs | |||
| Limit sensor cables | 0 | 17 | 17 | 0 | 0 | 0 | Replace 8 oversized wires with 5-wire flat cable | |||
| Mirror hanger triangles |
128 | 94 | 34 | 13 | 13 | 1664 | 1222 | 442 | Remove excess metal | |
| Barrier Strip | 48 | 21 | 27 | 16 1/2 | 16 | 792 | 336 | 456 | Replace oversized conncector with smaller one | |
| Handle Screws | -1 | 1 | 18 1/2 | 18 1/2 | 0 | -19 | 19 | Trim excess length - 3/16" | ||
| Power Socket | 29 | 0 | 29 | 18 1/2 | 19 | 537 | 0 | 537 | Replace XLR connector with disk drive power connector | |
| Fan switch | 4 | 3 | 1 | 18 1/2 | 20 1/8 | 74 | 60 | 14 | Replace toggle switch with rocker switch in back board. Switch will replace plywood. | |
| Limit Sensor Brackets |
15 | 16 | -1 | 18 | 18 | 270 | 288 | -18 | Cut out unnecesary metal (add cable holder) | |
| Motor Mount Brackets |
70 | 53 | 17 | 18 | 18 | 1260 | 954 | 306 | Cut out unnecesary metal | |
| Power relay | 0 | 3 | -3 | 17 | 17 | 0 | 51 | -51 | Add relay for power control rather than run power through ribbon cable | |
| Power and Paddle wiring |
58 | -58 | 18 | 18 | 0 | 1044 | -1044 | Not complete! | ||
| Front Fan | 0 | 81 | -81 | 11 |
